PORTABLE GROOVER M/S
PORTABLE GROOVER M/S just attach to a REX pipe threading machine for fast, easy grooving.
- Anti-slipping device enables safe, efficient processing.
- Groove depth easily adjusted.
- Special power booster facilitates light and easy operation.
- Makes grooves on 1" to 6" Schedule 10 and 1" to 3" Schedule 40 steel pipes.
- Makes grooves on 1" to 6" Schedule 10 and 1" to 3" Schedule
40 steel pipes.
- Easily attached to REX N50A, R50A, P50A, NP50A, FP50A, N80A, S80A, NP80A, N100A, #300 or 300 Compact.
- Like the Light Groove 150DX, groove depth is easily adjusted.
Power mechanism enables grooving with minimal force.
- Compact, lightweight, excellent durability.
- Mount the groover on any of the machines simply by replacing the mount base (5 types available).
Standard accessories :
Mount base (Except RG-R0) 1 pc,
Connecting shaft 1 pc,
Socket head cap screw (M8×25) 4 pcs,
Spring washer (8mm) 4 pcs, Hex key 3, 4, 5, 6 mm,
Grease, Tool box
*Optional Accessories ; See the "TECH INFO" > Accessories for Groovers

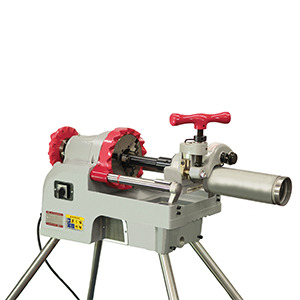

RG-R1 with FP50A
Portable Groover M for Steel Pipe

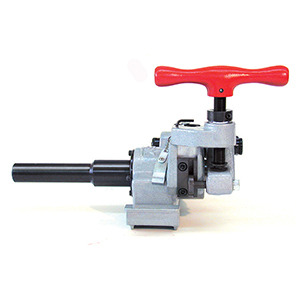

RG-R0 with Mount Base R1
Portable Groover S for Stainless Steel Pipe

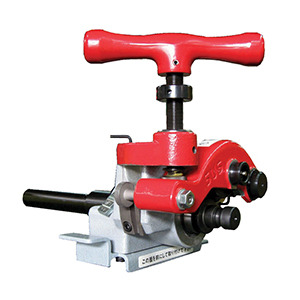

RG-S1 with Mount Base R1
* Subject to confirmation of adaptability to SUS pipe in each country.

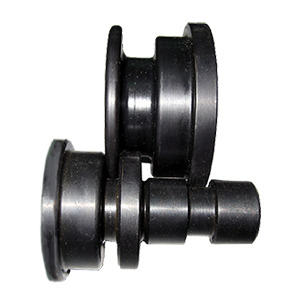

Rollers for SUS
Precise grooving with special rollers
SPECIFICATIONS
PORTABLE GROOVER M <25A-150A (1"-6")> *Standard Model : 2"- 6"
| Code No. | Model | Applicable machine | Working Capacity | Weight (kg) |
| 341505 | RG-R0 | No Mount Base | '1" - 6" Sch. 10 20 | 12 |
| 341501 | RG-R1 | N50A, R50A, P50A, NP50A, FP50A | '1" - 3" Sch. 10 - 40 | 14.5 |
| 341502 | RG-R2 | N80A, S80A, NP80A | Standard Model | |
| RG-R3 | N100A | For 2" - 6" Sch. 10 - 20 | ||
| 341503 | RG-E1 | #300 | 2" - 3" Sch. 10 - 40 | |
| 341504 | RG-E2 | 300 Compact | (Roller set 341558) | |
| 341631 | RG-S1 | No Mount Base | Stainless Steel Pipe | 10 |
| 30 - 150Su, 1" - 6" : Sch. 5S | ||||
| Standard Model | ||||
| S1 - 30 - 150Su, 1" - 1 1/2" : Sch. 5S | ||||
| 341632 | RG-S2 | (Roller set 341635) | ||
| S2 - 60 - 150Su, 2" - 6" : Sch. 5S | ||||
| (Roller set 341636) | ||||
