LIGHT GROOVE RG150ADX - RG150A (Autmatic Pump)
No more worries about obtaining the perfect groove!
LIGHT GROOVE 150DX grooving of 1" - 16" Schedule 10 and, 1" - 12" Schedule 40 Steel pipe for on-site and workshop.
25A - 400A (1" - 16") / Standard Model : 50A - 150A (2" - 6")
For on-site and workshop grooving of 1" - 16" Schedule 10 and, 1" - 12" Schedule 40 steel pipe.
Utilises REX's latest technology to minimise cost and improve efficiency.
Self-centring head minimises pipe flare and secures the pipe firmly in the machine.
Automatic pump and indicator lamp ensure stable grooving.
Designed for maximum productivity and lowest cost per groove.
Standard Accessories :
Tool box, Split level, Spanner, T-wrnch, Grease, Roller set 2" - 6"(Sch.10 - 40) / 341133, Spacer 1" - 6" / 341125
*Optional Accessories ; See the "TECH INFO" > Accessories for Groovers

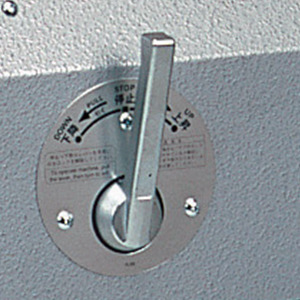

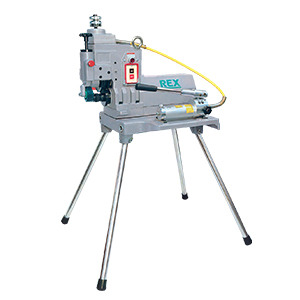

LIGHT GROOVE RG150ADX - RG150 (Hand Pump) / 341080
For on-site and workshop grooving of 1" - 16" Schedule 10 and, 1" - 12" Schedule 40 steel pipe.
Hand Pump : RG150

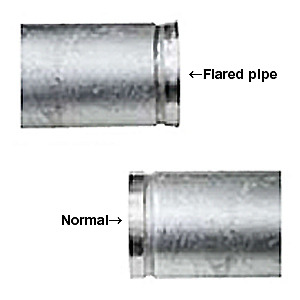

High precision machining avoids unwanted flared pipe ends.
Flared pipe ends mean the gasket can't be placed on the coupling, so the job needs to be done all over again.
Furthermore, to avoid producing such defects needs great skill in aligning the pipe perfectly.
REX' self-centering function means just about anyone can process pipes in a stable manner and with increased efficiency.

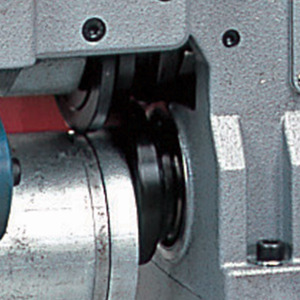

Rollar
Roll grooving is different to cut grooving.
Roll grooving is a process by which the pipe is deformed under pressure, which maintains its strength.
Numerous reports indicate that roll grooving prevented damage to pipelines during the 1995 Kobe Earthquake, Japan.

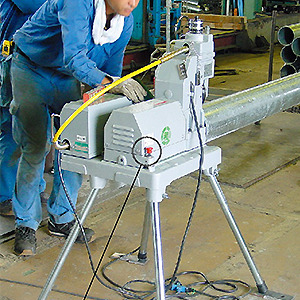

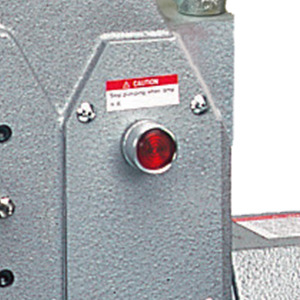

Indicator Lamp
The indicator lamp automatically lights up when grooving is complete so that even a novice can be sure of achieving the correct groove depth.
Automatic Pump
The electric powered pump was developed specifically for this machine to make accurate grooving easier.
Self-centring Head

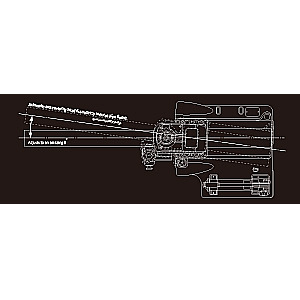

The head adjusts up to an amazing 8° to ensure a perfectly centred groove every time.
The carrying handles also serve as guides to make setting pipes easier.

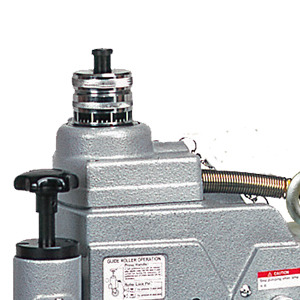

Raise the red knob on the head lock pin to release the self-centering head.

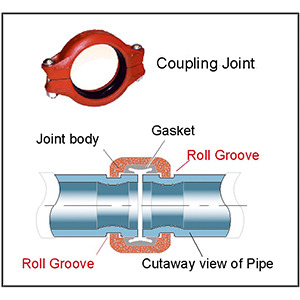

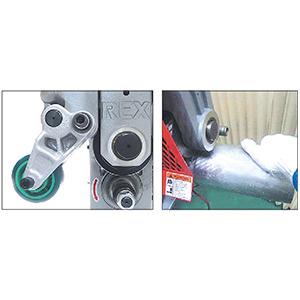

Coupling Joint
Guide roller prevents the pipe from detaching and eliminates vibration, so there's no need to place your hand on the pipe.
SPECIFICATIONS
LIGHT GROOVE 150DX <25A-400A (1"-16")> *Standard Model : 2"- 6"
| Code No. | Model | Voltage | Pump | Weight (kg) | Remarks |
| 341071 | RG-150A | 220V-230V 50Hz | Auto | 85 | |
| 341074 | RG-150A | 220V-230V 50Hz | Auto | 85 | CE with footswitch |
| 341075 | RG-150A | 110V 50Hz | Auto | 85 | CE with footswitch |
| 341080 | RG-150 | 220V-230V 50/60Hz | Hand | 75 | |
| Working Capacity (in.) | 1-16 Sch. 10 steel pipe, 1-12 Sch. 40 steel pipe |
| Motor | 700W Series Motor |
| Rotation speed (rpm) | 49 (unloaded) |
| Dimensions (mm) | D685 x W490 x H625 |
