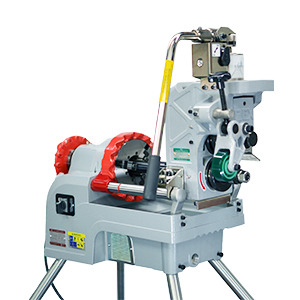

PORTABLE GROOBER H / RG-RH
RG-RH unit provides 16" grooving (Schedule 10) and Schedule 40 grooving up to 12".
25A - 400a (1" - 16" ) / Standard Model : 50A - 150A (2" - 6")
- Compact, light weight, powerful, and large capacity!
- Easy to mount on your threading machine.
- Easy operation with guide roller means there is no need to put your hand on the pipe.
- Incredibly light handle with hydraulic cylinder.
Standard Accessories :
Roller set 2" - 6" (Sch. 10 - 40) / 341133
Spacer 1" - 6" (Mount Kit not included) / 341125
*Optional Accessories ; See the "TECH INFO" > Accessories for Groovers

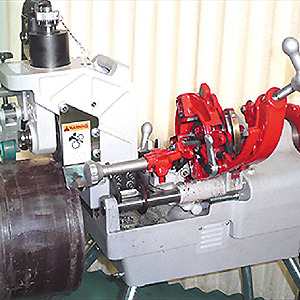

No need to remove carriage, reamer or Die-head

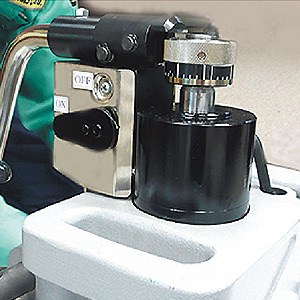

Hydraulic Cylinder

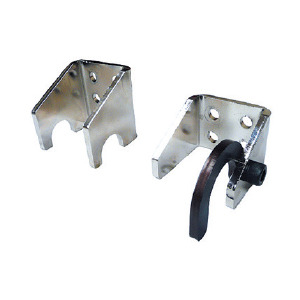

OPTION : Mount kit / 341560

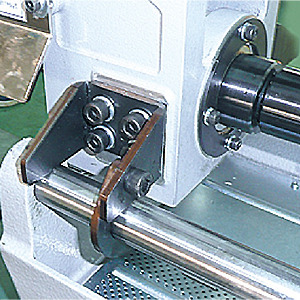

Simple mount kit (option) provides adaptability to REX 2", 3", 4" threading machines and #300.
SPECIFICATIONS
PORTABLE GROOVER H <25A-400A (1"-16")> *Standard Model : 2"- 6"
| Code No. | 341506 |
| Model | RG-RH |
| Working Capacity (in.) | 1-16 Sch. 10 steel pipe, 1-12 Sch. 40 steel pipe |
| Dimensions (D x W x H) mm | D272 x W478 x H385* |
| Weight (kg) | 35.5 |
*Excluding connecting shaft and pump handle
