Cordless Flange RT20SII
Stainless Steel Tube Tools, Cordless Flange RT20SII ; Auto-flanging in 5 seconds!
Applicable tube : M -13 (½") (16.8 mm), M -15 (¾") (20.0 mm)
Number of flanges : 2 or 3 ridges
Time for flanging : About 5 seconds
Flanging method : Revolving eccentric cone under stable pressure
Revolution speed : 280 rpm
Motor : DC motor
Battery : 10.8 V Li-ion / 424982
Standard accessories :
Charger / 424985), Clamps with Liner (½", ¾"),
Hex key (2.5 mm), Carrying Case

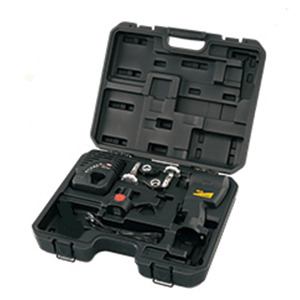

Carrying Case
SPECIFICATIONS
RT20SII <1/4" - 3/4">
| Code No. | Model | Voltage (V) | Weight (kg) | |
| Body | with Battery | |||
| 424978 | RT20SII | 220 | 1135 | 1,320 |
Optional Accessories
| Code No. | Model | |||
| 424975 | Clamp without Liner for RT20S | |||
| 424777 | Liner 1/2" (16.8 mm) | |||
| 424778 | Liner 3/4" (20.0 mm) | |||
Cordless Flange, Stainless Steel Tube Tools, 1/2" - 3/4", M-13, 1/2" , 16.8mm, M-15, 3/4", 20.0mm, Eccentric cone, DC motor, 10.8V, Li-ion, Battery, 424982, Charger, 424985, Clamp, Liner, Hex key, 2.5mm, Carrying case, Stainless Flexible Tube, RT20SII, 424978, CE, 424975, 424777, 424778
