FLEXBLE TUBE CUTTER CLICK 25N / 25N / MINI 32N and STRIPPER

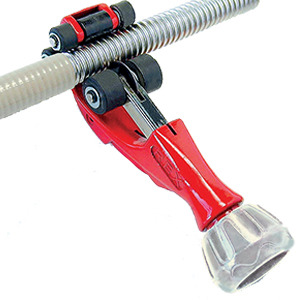

Cutter and Stripper for Stainless Flexible Tube.
Prevent over feeding - safe, easy, and quick to use!
-Plastic and polyurethane rollers enable smooth cutting with less twisting of external vinyl coat.
- Cuts stainless steel flexible tube precisely with fewer burrs and dents.
- Spare blade included as standard. (25N, CLICK 25N only)

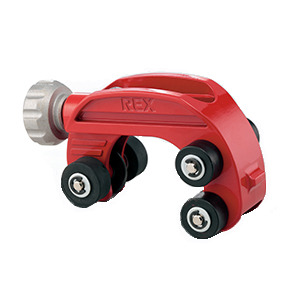

CLICK 25N / 1713F5 (8A - 25A)
The sound and feel of clicks inside the knob greatly reduce burrs at tube edge.
Easy screw feeding blade - each click of the knob provides a 1/6 rotation.

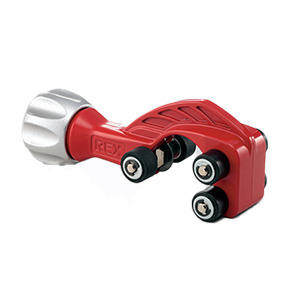

25N / 1713F3 (8A - 25A)

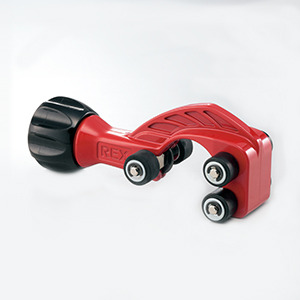

MINI 32N / 1713F4 (8A - 32A)
Cuts 8-32A (nominal size) tube, despite its light and compact body.

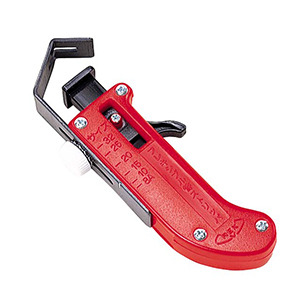

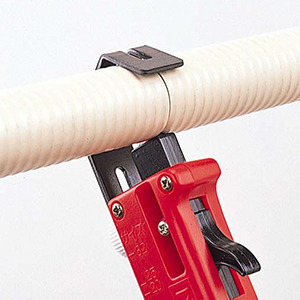

Stripper /1702FS
Stripper for plastic coat
SPECIFICATIONS
FLEXIBLE TUBE CUTTER / STRIPPER <8A-32A>
| Code No. | Model | Applicable sizes (A) | Weight (g) |
| 1713F3 | Flexible Tube Cutter 25N | 8 - 25 | 245 |
| 1713F4 | Flexible Tube Cutter MINI 32N | 8 - 32 | 220 |
| 1713F5 | Flexible Tube Cutter CLICK 25N | 8 - 25 | 255 |
| 424200 | Cutter Wheel 20 for 1703F2 | 23 | |
| 1703F7 | Cutter Wheel 25/32 for 1703F3-5*, 1713F3-5 | ||
| 1702FS | Stripper | 8 - 32 | 80 |
| 170205 | Blade for Stripper | ||
*previous model
