Cordless Flare RF20SⅡ
Copper Tube Tools, Cordless Flare RF20SIII improved performance and ease of handling!
Applicable Tube : Copper Tubes (O-type, OL-type) JIS H3300 C1220T
Applicable Tube Size : ¼", ⅜", ½", ⅝" *, ¾" *
Flare Type : Supports Class 2 refrigerant (Supports R-410A)
Dimensions (L x W x H) mm : 108 x 72 x 225 (108 x 72 x 261 with battery)
Time for flaring : About 5 seconds
Flaring method : Revolving eccentric cone under stable pressure
Revolution speed : 280 rpm
Motor : DC motor
Battery : 10.8 V Li-ion / 424982
- Capacity (mAh) : 2,000
- Charging time (min) : 60 (approx)
- Charges/Discharges : 500 times
- Dimensions (mm) : L60 x W54 x H85
Charger
- Dimensions (mm) : L146 x W109 x H61

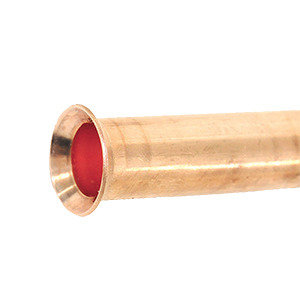

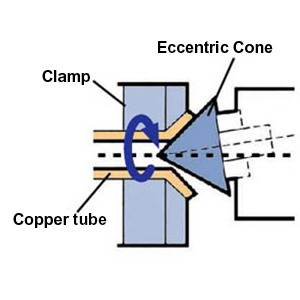

Eccentric Cone
The eccentric cone moves forward with a rotary motion to gradually push and expand the inner diameter of the copper tube.
The forward movement of the cone is then stopped by the clutch, which activates at a predetermined pressure.
The flared surface of the copper tube is given a clean finish by the cone's rotary motion.

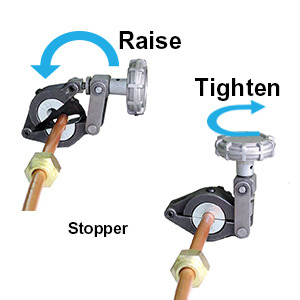

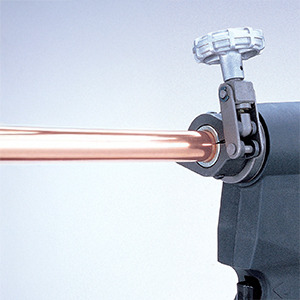

One-Action Mechanism
The clamped position of the copper tube is fixed using a stopper, eliminating unevenness when flaring.

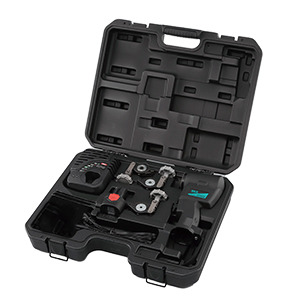

Carrying Case

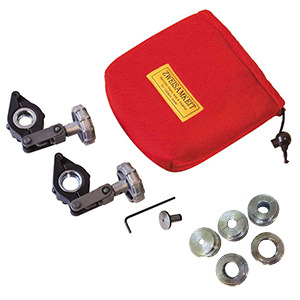

OPTION : Flanging tool set changes RF20S to RT20S / 424980
- Clamp with liner (1/2", 3/4")
- Bag
- Spanner 2.5 mm
- Flanging cone

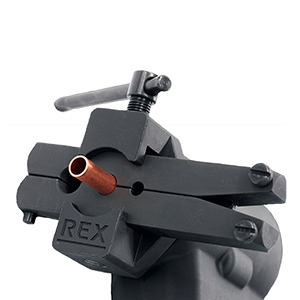

OPTION : Clamp with Flaring Bar (¼"、3/8"、½") / 424894

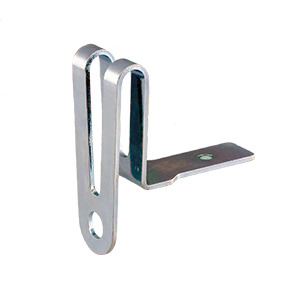

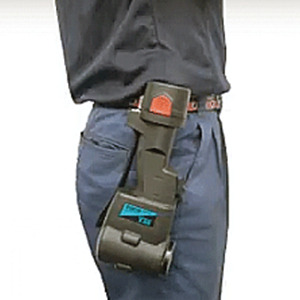

OPTION : Hook / 424890

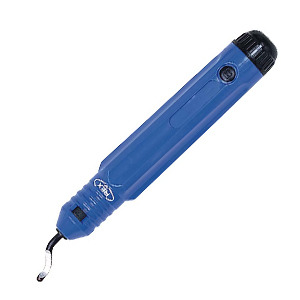

OPTION : Scraper / 471991
Enables clean reaming on the inside of cut pipe.
SPECIFICATIONS
Cooper Tube Tools RF20SII <1/4" - 3/4"> Specifications
| Code No. | Model | Voltage (V) | Weight (kg) | |
| Body | with Battery | |||
| 424911 | RF20SII | 100 | 1135 | 1,320 |
| 424941 | RF20SII | 220 | ||
Optional Accessories
| Code No. | Model | |||
| 424981 | RF20SC Lithium-ion Charger AC 100-240V KC | |||
| 424961 | RF20SC Lithium-ion Charger AC 100-240V A-plug | |||
| 424985 | RF20SC Lithium-ion Charger AC 100-240V C-plug | |||
| 424950 | Clamp without Liner for RF20S | |||
| 424850 | Liner 1/4" (6.35 mm) | |||
| 424852 | Liner 3/8" (9.52 mm) | |||
| 424853 | Liner 1/2" (12.70 mm) | |||
| 424854 | Liner 5/8" (15.88 mm) | |||
| 424855 | Liner 3/4" (19.05 mm) | |||
| 424980 | Flanging Tool Set | |||
| 471991 | Scraper | |||
| 471992 | Blade for Scraper 10 pcs Set | |||
| 424956 | Charger 100V for 9.6V NiCd Battery (for RF20N) | |||
| 424960 | Charger 220-230V for 9.6V NiCd Battery (for RF20N) | |||
| 424894 | Clamp with Flaring Bar (1/4", 3/8", 1/2") | |||
| 424890 | Hook | |||
Battery
| Code No. | Type | Output Voltage(V) | Weight (g) |
| 424987 | RF20SB Lithium-ion Battery | 10.8 | 185 |
Charger
| Code No. | Type | Input Power Supply | Weight (g) |
| 424985 | RF20SC Lithium-ion Charger | 10.8 | 335 |
