F25A Pipe threading machine you can carry with just one hand! The mighty lightweight, built in safety features, too. By changing the Dies, you can threading to process 8A to 25A (1/4" to 1") Steel and Stainless steel pipes, BSPT, NPT, conduit, NPSM, and BSW. STANDARD ACCESSORIES : - Cutting Oil (50W-R 1L x 2 or 100SW-RN 0.5L x 4) - Hex key 3, 5 mm, Dies 1/2" - 3/4", 1" 1 set each - Die-head 1/2" - 1" Note: This product has four product numbers: F25A : BSPT, 220V / 205151 F25A : Conduit, 220V / 205153 F25AIII : 110V / 205160 F25AIII : 220V / 205161

F25A Series

[Model Number : 205151 / 205153 / 205160 / 205161]

The S40AIII is a small mainstream 110V pipe threading machine with a motor design with a brake to prevent entanglement . By changing the Dies, you can threading to process 8A to 40A (1/4" to 11/2") Steel and Stainless steel pipes, BSPT, NPT and BSW. - Small but powerful 500W Universal motor. - Easy to use, high productivity, excellent portability. - Both Manual Opening (S40a) and Uni-auto(S40AV) Die-heads available. - Pipe size can be adjusted simply by turning the lever nut. - Thread length can be adjusted just by changing the lever contact(Uni-auto Die-head). - Die-cast body allows high precision and stable threading. - A machine backed by a history of perfection. STANDARD ACCESSORIES : - Cutting Oil (50W-R) 2L - Hex key 3, 5 mm, Dies 1/2" - 3/4", 1" - 1 1/2" 1 set each - Die-head 1/2" - 1 1/2" Note: This product has two product numbers: S40A : Manual Die -head, 110V / 207402 S40AV : Uni-auto Die-head, 110V / 207540

S40A

[Model Number : 207402 / 207540]

A best seller among compact machines! By changing the Dies, you can threading to process 8A to 50A (1/4" to 2") Steel and Stainless steel pipes, BSPT, NPT and NPSM, BSW, UNC, Metric, BSPP, PF. Conduit, Grooving and Bevelling. - Small but powerful 1000W Universal motor. - Easy to use, high productivity, excellent portability - only 48 kg. - Pipe size can be adjusted simply by turning the lever nut. - Thread length can be adjusted by just changing the lever contact(except Manual Die-head). - FR50A and FR50AV supports #300 Die heads and Dies. STANDARD ACCESSORIES : - Cutting Oil (50W-R) 2L - Hex key 3, 4, 5, 6 mm, Dies 1/2" - 3/4", 1" - 2" 1 set each - Die-head 1/2" - 2" Note: This product has four product numbers: FR50AV : BSPT, 220V, 50/60Hz, G-plug / 218224 FR50AV CE : BSPT, 230V, 50Hz / 218220 FR50AV CE/UKCA : BSPT, 110V, 50Hz / 218222 FR50A CE/UKCA : BSPT, 110V, 50Hz / 218652

FR50A Series

[Model Number : 218224 / 218220 / 218222 / 218652]

The NP80A pipe threading machine that gives you the best finish you've ever seen! By changing the Dies, you can threading 8A to 80A (1/4" to 3") Steel pipes, Stainless steel pipes, BSPT/NPT, BSPP, PF, Conduit, NPSM, Metric, UNC, BSW threads, Cut grooving and Bevelling. Based on totally new concept, the NP 80A is designed to be user-friendly, easily maintained and completely reliable. "A machine you can really trust. Easy to use, high productivity, excellent portability." A machine that gives you total control and satisfaction on the job. STANDARD ACCESSORIES : - Carbon Brushes 1 pair, Cutting Oil (50W-R) 4L - Hex key 3, 4, 5, 6 mm, Dies 1/2" - 3/4", 1" - 2", 2 1/2" - 3" 1 set each - Die-head 1/2" - 2" , 2 1/2" - 3" one each Note: This product has ten product numbers: NP80A : BSPT, 220V, 50Hz / 274670 NP80A CE : BSPT, 110V, 50Hz, with Foot Switch / 274672 NP80A : BSPT/110V, 60Hz, no legs / 274673 NP80AV : BSPT, 220V, 50/60Hz, G-plug / 274750 NP80AV CE : BSPT, 230V, 50Hz, with Foot Switch / 274751 NP80AV : BSPT, 220V, 50Hz / 274752 NP80A : NPT, 220V, 60Hz / 274753 NP80AV : BSPT, 220V, 50Hz / 274754 NP80AVIII CE : BSPT, 230V, 50Hz, with Foot Switch / 274701 NP80AVIII : BSPT, 220V, 50Hz / 274702

NP80A Series

[Model Number : 274670 / 274672 / 274673 / 274750 / 274751 / 274752 / 274753 / 275754 / 274701 / 274702]

Efficient 3 -speed transmission speeds up your work. The N100A is a long-selling low-noise large pipe threading machine. By changing the Dies, you can threading 65A to 100A (11/2" to 4") steel pipes, stainless steel pipes, BSPT/NPT threads, cut grooving and bevelling. - Less than 100 sec to make a perfect 4" pipe taper thread. Less than 20 sec for a 1" pipe taper thread. - Uni-auto Die-head for 1/2" - 2" pipe. Die are compatible with NP50A/NP80A Manual Die-heads and Uni-auto Die-heads. - Profiling Die-head for 21/2" - 4" pipe. REX original profiling system enables precise, straight tapers, with 20 mm dies performing at higher speed and requiring less power consumption. - Quick adjustable cutter. - Quiet, maintenance-free condenser motor. - Built-in tool box is convenient for on-site work. - Large-capacity scrap catcher allows for long-term work. - Threading size, thread length, and micro fine adjustment of thread diameter can all be adjusted easily. - Compact and lightweight for its class (123 kg), it can be set up by just two people. - NV-auto and Manual Die-heads can be mounted as options. - Model with voltage shift switch available. (35A576/35A602) STANDARD ACCESSORIES : - Cutting Oil (246-R or 50W-R) 4L - Hex key 3, 4, 5, 6, 8 mm, Dies 1/2" - 3/4", 1" - 2", 2 1/2" - 4" 1 set each - Die-head 1/2" - 2" , 2 1/2" - 4" one each Note: This product has nine product numbers: N100A : BSPT, 220V, 50Hz / 35A570 N100A : BSPT, 110/220V, 60Hz / 35A576 N100A : BSPT, 110V, 60Hz, no legs / 35A578 N100A : NPT, 220V, 50/60Hz / 35A580 N100A : BSPT, 220V, 60Hz, G-plug / 35A591 N100A : NPT, 120V, 60Hz / 35A599 N100A CE : BSPT, 230V, 50Hz, with Foot Switch / 35A513 N100A CE : BSPT, 110/220V, 50Hz, with Foot Switch / 35A602 N100A CE : NPT, 230V, 50Hz, with Foot Switch / 35A5H0

N100A

[Model Number : 35A570 / 35A576 / 35A578 / 35A580 / 350591 / 35A599 / 35A513 / 35A602 / 35A5H0]

Large-diameter pipe threading machine, 150A pipe threading machine features a low-noise condenser motor and two variable speeds for efficient threading. By changing the Dies, you can threading 65A to 150A (11/2" to 6") steel pipes, stainless steel pipes, BSPT/NPT threads, cut grooving and bevelling. - Uses condenser motor for quiet operation. - Efficient 2-speed transmission speeds up work. - Powerful hammer chuck holds large-diameter pipes securely. - Uses notch profiling Die-head, suitable for threading large-diameter pipes. - The notch profiling Die-head has low cutting resistance for optimum threading of large-diameter pipes. - Threading size, thread length and microfine adjustment of thread diameter can all be adjusted easily. STANDARD ACCESSORIES : - Cutting Oil (246-R or 50W-R) 4L - Hex key 3, 4, 5, 6, 8 mm, Dies 2 1/2" - 4"、5”　-6” 1 set each - Die-head 2 1/2" - 4", 5”　-6” one each - 4 legs Note: This product has four product numbers: 150A : BSPT, 220V, 50Hz / 366500 150A : BSPT, 220V, 60Hz, G-plug / 366602 150A : NPT, 220V, 60Hz, G-plug / 366616 150A : NPT, 120V, 60Hz / 366617

150A

[Model Number : 366500 / 366602 / 366616 / 366617]

Genuine REX Cutting Oil for REX Pipe Threading Machines Cutting oil - 50W-R (Water washable)/100SW-RN (for Stainless steel pipe)/ 246-R (for General plumbing) provides superior cooling. Cutting oil cools the workpiece to produce a superior threading finish. Using the right oil means consistent finishes and increases the life of the Dies. (Refer to "Making The Best Thread", TECH INFO) REX cutting oil does not use environmental endocrine disrupters stated in the PRTR protocol* (June, 2002). * PRTR : (Pollutant Release and Transfer Register) - You can download SDS (Safety Data Sheet) regarding REX Thread Cutting Oil from "DOWNLOAD". Note: This product has nine product numbers: 246-R for General plumbing, 4L/18L/200L : 181613 / 186610 / 186611 50W-R (Water washable), 4L/16L/200L : 183001 / 183003 / 183004 100SW-RN for Stainless steel pipe, 4L/16L/200L : 183014 / 183015 / 183016

Genuine REX Cutting Oil - 50W-R /100SW-RN / 246-R

[Model Number : 181613 / 186610 / 186611 / 183001 / 183003 / 183004 / 183014 / 183015 / 183016]

The 1/2" to 2" Manual Die-head, Uni-auto Die-head, NV-auto Die-head and Self-opening Die-head are compatible with the 50A, 80A, and 100A. *For details on the compatibility of Die-heads and Dies, please refer to the "Compatibility Table" in "TECH INFO".

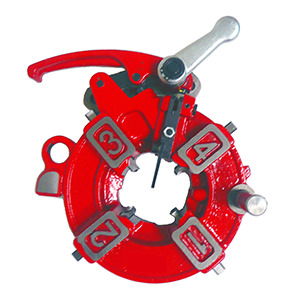

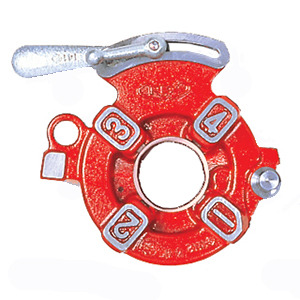

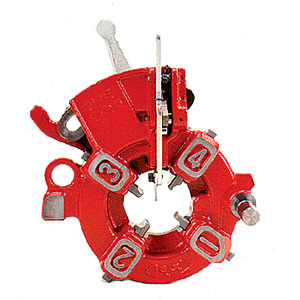

Manual Die-head / Uni-auto Die-head / NV-auto Die-head / Self-opening Die-head / Self-profiling Die-head / Profiling Die-head / Grooving Die-head / Beveling Die-head

[Model Number : 290000 / 290820 / 295633 / 295649 / 295643 / 295652 / 290020 / 290030 / 295660 / 292820 / 292810 / 292814 / 292850 / 29A870 / 292020 / 292030 / 29A901 / 293040]

While there are differences in the types of Die-head, the Dies for 1 1/2" to 4" mchines are mostly interchangeable. Dies can be changed without removing the Die-head from the machine. Notches in the Dies click into position against spring balls in the Die-head to allow you to easily confirm the Dies have been installed correctly. Two-step blade provides a stable bite allowing you to remove any external coating and cut the pipe at the same time (BSPT only). *For details on the compatibility of Die-heads and Dies, please refer to the "Compatibility Table" in "TECH INFO".

Dies (BSPT / NPT / NPSM / BSW / UNC / Metric / BSPP / PF / Conduit / Grooving / Bevelling)

Enables 1/4" - 3/8" self-opening Die-heads to be used on your existing 40A-100A machines.

1/4" - 3/8" Die-head Holder

[Model Number : 170020]

For Steel pipe, Stainless steel pipe

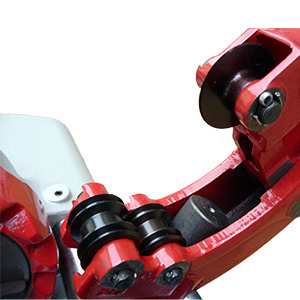

Cutter wheels for threading machine

[Model Number : 135076 / 135070 / 135077 / 135071]

Nipple Attachments saves wasting short pipes. Suitable for internally coated pipes.

Nipple Attachments

[Model Number : 1701NL / 1701NA / 1701NB / 1701NC / 1701ND / 1701NE / 1701NF / 1701NG / 1701NH / 1701NK / 1701N0 / 1701N1 / 1701N2 / 1701N3 / 1701N4 / 1701N5 / 1701N6 / 1701N7 / 1701N9 ]

The Magneter / 17027A most suitable tool for removing scrap from the machine oil tank.

MAGNETER

[Model Number : 17027A]

Thread Gauges are tools for checking 1/2"-6" (15A-150A) male pipe taper threads. Refer to "Making the best thread (Inspecting the Thread)", "TECH INFO" for how to use the thread gauge.

THREAD GAUGES

[Model Number : 473001 / 473002 / 473010 / 473011 / 473012 / 473013 / 473014 / 473015 / 473016 / 473017 / 473019 / 473020 / 473021]

PIPE SUPPORT HG200 / 170071 Applicable pipe : 25A -200A (1" - 8") Height : Min 550mm, Max 1050mm

PIPE SUPPORT Series

[Model Number : 170071 / 341109 / 341110 / 170051 / 170057 / 170030]

Scraper / 471991 enables clean reaming on the inside f cut pipe. Blade for scraper (10pcs/pack) / 471992

SCRAPER

[Model Number : 471991]

40 blades, high durability! MULTI REAMER reaming both inside and outside of pipe / tube. Applicable pipe : Stainless steel pipe, Copper tube, Aluminium pipe, Steel pipe, and Plastic pipe.

MULTI REAMER / MULTI REAMER Mini

[Model Number : 382250 / 382255]

CHUCK JAW INSERT RT50A-80A : 32A, mini 40A, 60AII, 90AIII, 50ADX, 80ADX, N50 Non-CE, N80 Non-CE, S80 Non-CE / 70RT RT100A-150A : N100A Non-CE, 150A, 100ADX / A0RT NS type : F25A, NS25A, N40A CE / G0NS RS type 100A-150A : N100A CE / A0RS S type 40A-90A : FP50A, FR50A, NP80A, N50A CE, P50A(V), R50A(V), N80A CE, 60AIII TW, 90AIII EU, mini 40A(After June 1983), S80A CE, TW, NP50A, NR50A / 70KS

Chuck Jaw Insert

[Model Number : 70RT / 70KS/ A0RT / A0RS / G0NS]

MYM2 / PQEE / PMM10 /FM10 / TYM2 / GM10 / NM10 / PMM10 / FM10 / 7M10

Carbon brush

[Model Number : MYM2 / PQEE / PMM10 /FM10 / TYM2 / GM10 / NM10 / PMM10 / FM10 / 7M10]

The FP80A pipe threading machine that gives you the best finish you've ever seen! By changing the Dies, you can threading 8A to 80A (1/4" to 3") Steel pipes, Stainless steel pipes, BSPT/NPT, BSPP, PF, Conduit, NPSM, Metric, UNC, BSW threads, Cut grooving and Bevelling. Based on totally new concept, the FP80A is designed to be user-friendly, easily maintained and completely reliable. "A machine you can really trust. Easy to use, high productivity, excellent portability." A machine that gives you total control and satisfaction on the job. STANDARD ACCESSORIES : - Carbon Brushes 1 pair, Cutting Oil (50W-R) 4L - Hex key 3, 4, 5, 6 mm, Dies 1/2" - 3/4", 1" - 2", 2 1/2" - 3" 1 set each - Die-head 1/2" - 2" , 2 1/2" - 3" one each Note: This product has thirteen product numbers: FP80A : BSPT, 220V, 50Hz / 274690 FP80A : BSPT, 110V, 60Hz, SUS / 274691 FP80A CE/UKCA : BSPT, 110V, 50Hz, with Foot Switch / 274692 FP80A : BSPT, 110V, 60Hz, no legs / 274693 FP80AVIII CE : BSPT, 230V, 50Hz, with Foot Switch / 274711 FP80AVIII : BSPT, 220V, 50Hz / 274712 FP80AVIII : BSPT, 110V, 60Hz / 274713 FP80AV : BSPT, 220V, 50/60Hz, G-plug / 274760 FP80AV CE : BSPT, 230V, 50Hz, with Foot Switch / 274761 FP80AV : BSPT, 220V, 50Hz / 274762 FP80A : NPT, 220V, 60Hz / 274763 FP80AV : BSPT, 220V, 50Hz / 274764 FP80AV CE/UKCA : BSPT, 110V, 50Hz, with Foot Switch / 274765

FP80A Series

[Model Number : 274690 / 274691 / 274692 / 274693 / 274711 / 274712 / 274713 / 274760 / 274761 / 274762 / 274763 / 274764 / 274765]

PIPE VICES ; Ensure high durability and long life.

PIPE VICES

[Model Number : 1201V0 / 1201V1 / 1201V2 / 1201V3 / 1201V4 / 1201VL / 1201V0 / 120LV1 / 120LV2 / 120LV3 / 120LVL / 120CV6 / 120CVL]
