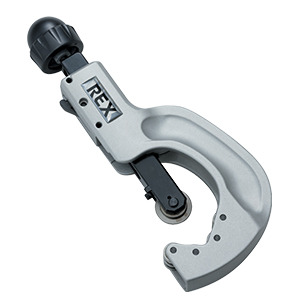

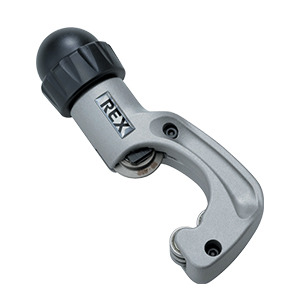

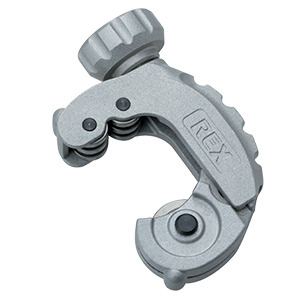

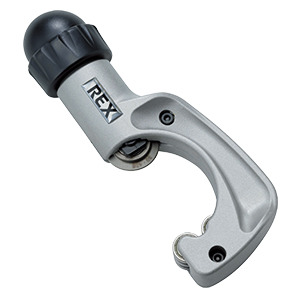

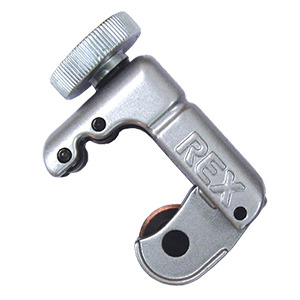

RB TUBE CUTTER Series
So light! So easy to use! - REX advanced roller system
Ball bearings make the difference! Great cuts with the greatest of ease!
Light, precise cutting of thin wall stainless steel (INOX) tube attracts the piping world's atention.
High-quality radial ball bearings enable REX RB tube cutters for 4 mm - 67mm Copper and Stainless steel tube
to cut with less effort than any previous models.
Give them a try and see just how easy it is!
Replace the wheel with an SUS tube cutter wheel and they can even cut thin wall stainless steel tube.
*SU tube replacement cutter wheel for Models 30, 42 and 67 sold separately.
Note: This product has 5 model numbers: 425122 / 427228 / 427630 / 427642 / 427667 .
425122 : RB22
Capacity (outside diameter) : 5 - 22mm
Application pipe : for Copper tube
427128 : N28 / 427228 : N28S
Capacity (outside diameter) : 4 - 28mm
Applicable pipe :
N28(427128) : for Copper tube
N28S(427228) : for Thin wall stainless steel tube
427830 : N30P / 427630 : N30S
Capacity (outside diameter) : 5 - 34mm
Applicable pipe :
N30P(427830) : for Copper tube, Coated copper tube
N30S(427630) : for Thin wall stainless steel tube
Package : English
427842 : N42P / 427642 : N42S / 427342 : N42M
Capacity (outside diameter) : 6 - 42mm
Applicable pipe :
N42P(427842) : for Copper tube, Coated copper tube
N42S(427642) : for Thin wall stainless steel tube
N42M(427342) : for Thin wall stainless steel tube *Grooving tool
English Package : N42P / N42S
427867 : N67P / 427667 : N67S / 427467 : N67PE / 427367 : N67M
Capacity (outside diameter) :
N67P(427867) / N67S(427667) / N67M(427367) 12 - 67mm
N67PE(427467) : 12 - 65mm
Applicable pipe :
N67P(427867) : for Copper tube, Coated copper tube
N67S(427667) : for Thin wall stainless steel tube
N67PE(427467) : for PE tube
N67M(427367) : for Thin wall stainless steel tube *Grooving tool
English Package : N67P / N67S
SPECIFICATIONS
RB TUBE CUTTER <Φ4-67>
| Code No. | Model | Capacity (outside diameter) |
Half diameter of rolling |
Length |
Weight |
Number of Bearings | Applicable tube | English Package | |||
| Copper tube | Coated copper tube | Thin wall stainless steel tube | PE tube | ||||||||
| 425122 | RB22 | 3-22 | 43 | 57 | 130 | 5 | ○ | ||||
| 427128 | RBN28 | 4-28 | 60 | 93 | 175 | 8 | ○ | ||||
| 427228 | RBN28S | ○ | |||||||||
| 427430 | RBN30P | 5-34 | 132 | 150 | 360 | 8 | ○ | ○ | ○ | ||
| 427230 | RBN30S | ○ | ○ | ||||||||
| 427442 | RBN42P | 6-42 | 150 | 180 | 400 | 8 | ○ | ○ | ○ | ||
| 427242 | RBN42S | ○ | ○ | ||||||||
| 427342 | RBN42M* | ○ | |||||||||
| 427466 | RBN67P | 12-67 | 222-250 | 330 | 870 | 14 | ○ | ○ | ○ | ||
| 427267 | RBN67S | 223-251 | ○ | ○ | |||||||
| 427467 | RBN67PE | 12-65 | 253-257 | ○ | |||||||
| 427367 | RBN67M* | 12-67 | 12 | ○ | |||||||
*Grooving tool
| Code No. | For use with | Use | Type | Quantity per Package | English Package |
| 424241 | RB22 | Copper tube only | Cutter wheels | 1 | |
| 424231 | RB28, N28 | 1 | |||
| 424234 | RB67 | 1 | |||
| 424242 | RB30mini | Copper tube and Coated copper tube | 1 | ||
| 424292 | RB30P, RB42P, N30P, RBN42P, RBN67P | 1 | ○ | ||
| 424236 | RB67PE | PE Tube | 1 | ||
| 424245 | RBN67PE | 1 | |||
| 424240 | RB28S, RBN28S, RB30miniS | Copper tube only | 1 | ||
| 424284 | RB30S, RB42S, RBN30S, N42S, N67S | 1 | ○ | ||
| 424286 | RBN67S | 1 | ○ | ||
| 424238 | RB42M, RBN42M, RBN67M | Copper tube and Coated copper tube | Roller | 1 | |
| 424239 | RBN67M | 1 |
