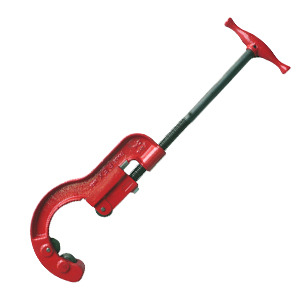

C series CUTTER
The standard for removing and repairing existing pipes: the C series cutter.

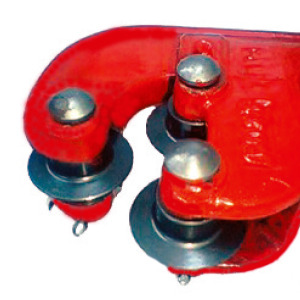

C2 and C3 can be made to accept three cutter wheels by replacing roller and cutter wheel.
C4 3 Wheel Cutter / 1301P4
The standard for removing and repairing existing pipes: the C series cutter.
C2 and C3 can be made to accept three cutter wheels by replacing roller and cutter wheel.
C2 3 Wheel Cuter / 1301PA

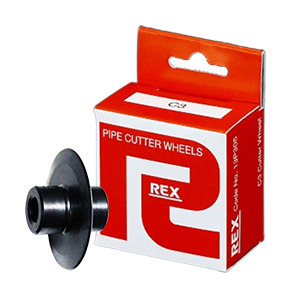

Cutter Wheel for C1 and C2 / 13P105
SPECIFICATIONS
C Series CUTTER <6-100A (1/8"-4") >
| Code No. | Model | Cutting Capacity A (in.) |
| 1301P1 | C1 Cutter | 6 - 32 (1/8 - 1 1/4) |
| 1301P2 | C2 Cutter | 6 - 50 (1/8 - 2) |
| 1301PA | C2 3 Wheel Cutter | |
| 1301P3 | C3 Cutter | 25 - 80 (1 - 3) |
| 1301PB | C3 3 Wheel Cutter | |
| 1301P4 | C4 3 Wheel Cutter | 65 - 100 (2 1/2 - 4) |
| 13P105 | C1/C2 Cutter Wheel | |
| 13P305 | C3 Cutter Wheel | |
| 13P405 | C4 Cutter Wheel |
Applicable Pipes: Steel Pipe
C1 Cutter, C2 Cutter, C2 3 Wheel Cutter, C3 Cutter, C3 3 Wheel Cutter, C4 3 Wheel Cutter, Cutter Wheel, Steel pipe, 6A-100A, 1301P1, 1301P2, 1301PA, 1301P3, 1301PB, 1301P4, 13P105, 13P305, 13P405, Pipe cuter, Cutting Tool, Cutting
RELATED PRODUCT
Main body made of tempered steel, ensuring high durability and long life. CM40 and CM50 models make even the marrowest of spaces accessible. These 4 wheel pipe cutters help you remove or repair pipes with ease. Work can be performed with a swing angle of 120°. CM40 and CM50 models with bearings are light and easy to use! Since the main body is equipped with bearings, work can be done with less than half the force required in conventional products (compared to our previous products).
CM40 / CM50(RB)
[Model Number : 130400 / 130500 (131500)]
The No. 10 Link cutter is effective for cutting Steel pipes and Ductile pipes, while the No. 2 Link cutter is effective for cutting Cast iron pipes. An additional 70mm over pipe circumference in three directions is sufficient to cut laid pipes. Easy to change size - just change the number of links. Clamp with ratchet wrench and move handle back and forth 60°to 100°to cut.
LINK CUTTER
[Model Number : 1302P2 / 1301P8]
So light! So easy to use! - REX advanced roller system Ball bearings make the difference! Great cuts with the greatest of ease! Light, precise cutting of thin wall stainless steel (INOX) tube attracts the piping world's atention. High-quality radial ball bearings enable REX RB tube cutters for 4 mm - 67mm Copper and Stainless steel tube to cut with less effort than any previous models. Give them a try and see just how easy it is! Replace the wheel with an SUS tube cutter wheel and they can even cut thin wall stainless steel tube. *SU tube replacement cutter wheel for Models 30, 42 and 67 sold separately. Note: This product has 5 model numbers: 425122 / 427228 / 427630 / 427642 / 427667 .

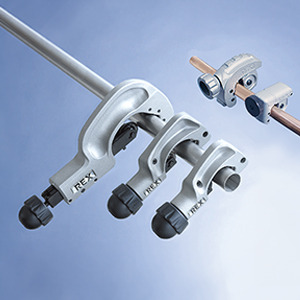

RB TUBE CUTTER Series
[Model Number : 425122 / 427228 / 427630 / 427642 / 427667]
