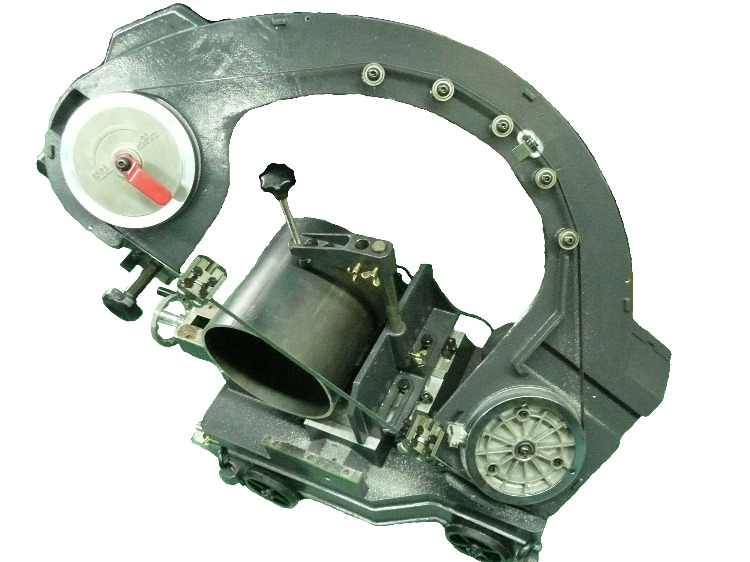

MANTIS 270A
MANTIS 270A
Among the Lightest and most portable of large Flat vice type Band saws, MANTIS 270A.
Does just about everything you need to do at site!
The latest model in the MANTIS range adds a new dimension to your work.
Hydraulic cylinder inside base unit allows variable adjustment of the frame lowering speed.
Cutting speed can be adjusted hydraulically and steplessly.
Equipped with a hydraulic damper for smooth, high-precision cutting.
FEATURES:
-Handles up to 10" pipe
-4 wheels built in for great portability
-Lightest in its class
-Oil-free cutting
-Hydraulic damper and spring allows smooth adjustment of cutting speed
-Cuts at angles from 0°to 45°
-Lets you replace the blade from the front (same as MANTIS180W)
-Built-in brush for plastic waste (same as MANTIS180W)
-Reset switch for when overload protection kicks in
-Clamp to keep pipe in place
OPTIONAL ACCESSORIES:

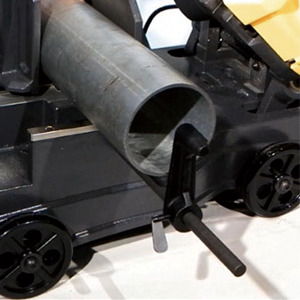

Cutting-length guide / 475196
*When attached to the main unit.

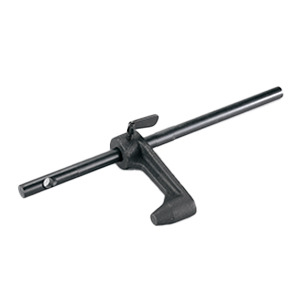

Cutting-length guide (Image before installation) / 475196

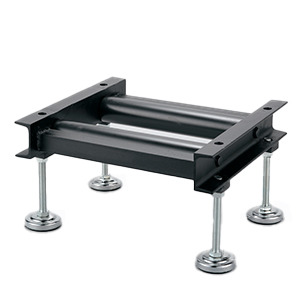

Pipe support for MANTIS270A / 4751Z9
SPECIFICATIONS
MANTIS 270A <8-250A (1/4"-10")>
| Code No. | 4751C1 |
| Model | MANTIS XB270A |
| Cutting capacity | 90°Round pipe Φ270/Square pipe250/Round bar (Mild steel) Φ40 45°Round pipe Φ170/Square pipe150 |
| Motor | Single phase 220V (50/60Hz), Split-phase Induction motor 250W(Output),380/350W(50/60Hz：Input) with overload protection |
| Pully speed(rpm) | 70(50Hz), 84(60Hz) |
| Dimensions(mm) | L990 x W600 x H510 |
| Weight (kg) | 80 |
| Standard accessories | 14-tooth HSS blade(x1)(475270), Spanner for adjustment of vice angle, Wrench(19mm), Hex key 8mm |
No.of notches to set the valve lever at when cutting (for XB270A)
| No.of notches to set the valve lever at when cutting (for XB270A) | |||||
| Material | High-speed steel Blade | ||||
| 14 | 18 | ||||
| Valve lever notches | |||||
| Steel pipe | Nominal size | 20A - 50A (3/4"-2") | 1-2 | 1-3 | |
| 65A - 250A (21/2"-10") | 2-4 | 2-4 | |||
| Stainless steel | Schedule 40 | 20A - 50A (3/4"-2") | 1-2 | 1-3 | |
| 65A - 250A (21/2"-10") | 2-4 | 2-4 | |||
| Thin wall stainless steel (SU pipe) | 20Su - 25Su | 0.5 | |||
| 30Su - 75Su | 0.5-1 | ||||
| 80Su - 125Su | 1-2 | ||||
| 150Su | 1-3 | ||||
| Plastic pipe (Vinyl chloride / Polyethylene pipe) | 1-2 | 1-2 | |||
| Cast iron pipe | 2-4 | ||||
| Steel pipe | Section steel | Thickness | 1-2 mm | 0.5-1 | |
| 2-3 mm | 1-3 | ||||
| 3-4 mm | 1-2 | 1-3 | |||
| >=4 mm | 2-4 | 2-4 | |||
| Round bar | =<15 mm | 1-2 | 1-3 | ||
| 16-40 mm | 2-4 | ||||
Use the table below to select the blade and cutting load that are appropriate for the type, diameter, wall thickness etc. of the material to be cut..
MANTIS Saw Blades (Optional extrs)
| Code No. | Material | No. of teeth (teeth / inch) | No. of blades included | |
| XB270A | 475270 | HSS (Bimetal) | 14 | 5 |
| 475275 | 18 | 5 | ||
Be sure to use only recommended blades.
