MANTIS XB180WA
MANTIS XB180WA
Lightest in its class!Two actions in one machine!
We've brought you safety, we've brought you ease of use, now we bring you a new type of machine in the MANTIS series.
Just change the vice for double the action!

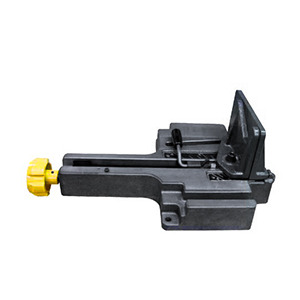

Flat Vice Unit / 475192
Just three bolts needed to change the vice.
The optional Chain Vice / 475190 can be purchased for use with this unit.
SPECIFICATIONS
MANTIS 180WA <8-150A (1/4"-6")>
| Code No. | 4751A1 |
| Model | MANTIS XB180WA |
| Cutting capacity | 90°Round pipe Φ180/Square pipe150/Round bar (Mild steel) Φ80 45°Round pipe Φ80/Square pipe80 |
| Motor | Single phase 220V (50/60Hz), Split-phase Induction motor 250W(Output),380/350W(50/60Hz：Input) with overload protection |
| Pully speed(rpm) | 70(50Hz), 84(60Hz) |
| Dimensions(mm) | L865 x W355 x H415 |
| Weight (kg) | 44 |
| Standard accessories | 14-tooth HSS blade(x1)(475211), Hex key 5mm, Hex socket wrench 17mm |
Selecting the Cutting Load and Blade for XB-125 / 120A / 180WS / 180WA
| Material | Alloy Blade | High-speed steel Blade | Grid saw |
||||||||||
| tooth | 8 | 10 | 14 | 18 | 24 | 10 | 14 | 18 | 24 | ||||
| Steel pipe | Nominal size | 8A - 25A(1/4"-1") | L | L | L | L | |||||||
| 32A - 80A(1 1/4"-3") | M | M | M | M | |||||||||
| 90A - 150A(3 1/2"-6") | H | H | H | H | |||||||||
| Stainless steel |
Schedule 40 | 8A - 25A(1/4"-1") | L | L | |||||||||
| 32A - 80A(1 1/4"-3") | M | M | |||||||||||
| 90A - 150A(3 1/2"-6") | H | H | |||||||||||
| Thin wall stainless steel(SU pipe) |
13 - 125Su | LL | |||||||||||
| 150Su | LL | L*3 | |||||||||||
| Plastic pipe(Polyethylene pipe / Vinyl chloride pipe) | LL | LL | LL | LL | |||||||||
| Conduit | Thik steel | M | M | ||||||||||
| Thin steel | L | L | L | L | |||||||||
| Cast iron pipe | H | H | |||||||||||
| Mortar-lined cast-iron pipe | H | ||||||||||||
| Steel | Section steel |
Thickness | <= 1.9mm | LL | LL | ||||||||
| 2 - 3.4mm | L*1 | L*2 | L*1 | L*2 | |||||||||
| 3.5 - 4.9mm | M*1 | M | M | M | |||||||||
| 5 - 7.9mm | M | H | M | H | |||||||||
| >= 8mm | H | H | H | H | |||||||||
| Round bar |
<= 15mm | M | M | M | M | ||||||||
| 16 - 50mm*4 | H | H | |||||||||||
| 51 - 80mm*1 | H | H | H | H | |||||||||
Use the table below to select the blade and cutting load that are appropriate for the type, diameter, wall thickness etc. of the material to be cut.
LL=ultra-light load
L=light load
M=medium load
H=heavy load
*1=XB180W only
*2=XB125/120A:M
*3=XB125/120A:LL
*4XB125/120A:16-60mm
Notes:
- The figures in the table are examples only. Select the blade and cutting load to match the actual material to be cut.
- When selecting the proper number of teeth on the blade, use the following guideline: thickness of material = 2 teeth.
- Depending on their composition or hardness, some materials are not applicable to the above table.
- When cutting plastic pipes, even if LL(ultra-light load) is selected, the cutting load may be too heavy and the pipe may be cut at an angle.
To prevent this, hold the handle on the frame with your hand and lower it slowly as you cut the pipe.
MANTIS Saw Blades (Optional extrs)
| Code No. | Material | No. of teeth (teeth / inch) | No. of blades included | |
| XB180WS/XB180WA | 475200 | Alloy | 8 | 10 |
| 475201 | 10 | |||
| 475202 | 14 | |||
| 475203 | 18 | |||
| 475204 | 24 | |||
| 475210 | HSS (Bimetal) | 10 | 5 | |
| 475211* | 14 | |||
| 475212 | 18 | |||
| 475213 | 24 | |||
| 475220 | Grid saw | |||
Be sure to use only recommended blades.
*Standard accessory
