100 / 200 MULTI CLAMP
The 100 / 200-II Multi-Clamp is a chain clamp for insertion type resin pipe joint for water supply that can accommodate a variety of fittings (sockets, elbows, bend tees, straight bends, and tees), sizes (50-200), and angles.
1. Chain clamp allows for wide range of applicable sizes.
100 : nominal size 50, 75, 100
200 : nominal size 100, 150, 200
2. Easy angle adjustment : 32 teeth on clutch for angle adjustment.
3. Clamp knob for easy fastening.
Large clamp knob and built-in screw improves maintenance.
4. 4-way clamp setting.
4-way of setting : upper, lower, outside and inside.
Note: This product has two model numbers: 100-II / 314041 and 200-II / 314042.

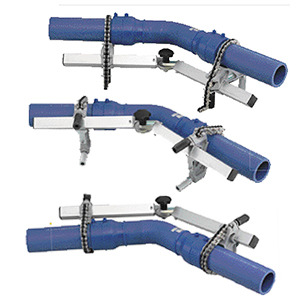

Variation of Clamping

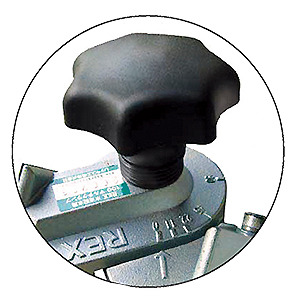

Joint Clutch
SPECIFICATIONS
Multi-clamp <50 - 200>
| Code No. | Model | Applicable size (Nominal) | Applicable joint |
| 314041 | 100-II Multi Clamp | 50 - 65 - 75 - 100 | Socket, Bend, T-type, |
| 314042 | 200-II Multi Clamp | 100 - 125 - 150 - 200 | Single socket (S.S.) straight, S.S. bend, S.S. Tee |
