RB TUBE CUTTER Series

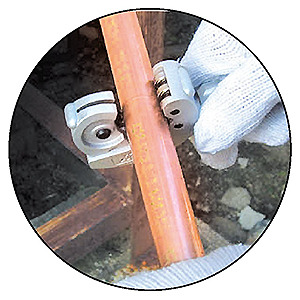

So light! So easy to use! - REX advanced roller system
Ball bearings make the difference! Great cuts with the greatest of ease!
Light, precise cutting of thin wall stainless steel (INOX) tube attracts the piping world's atention.
High-quality radial ball bearings enable REX RB tube cutters for 4 mm - 67mm Copper
and Stainless steel tube to cut with less effort than any previous models.
Give them a try and see just how easy it is!

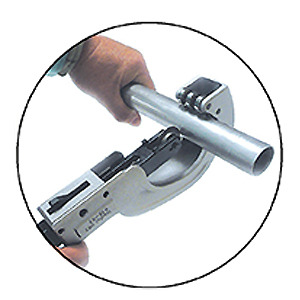

Replace the wheel with an SUS tube cutter wheel and they can even cut thin wall stainless steel tube.
*SU tube replacement cutter wheel for Models 30, 42 and 67 sold separately.

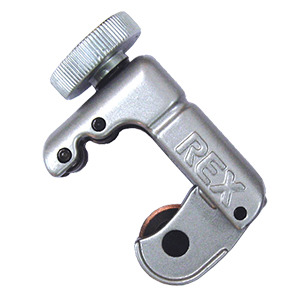

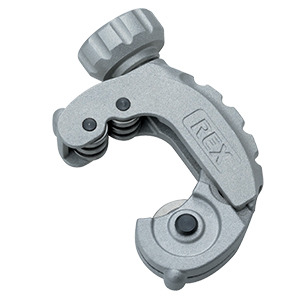

RB22 / 425122
N28S / 427228
N28
N28S

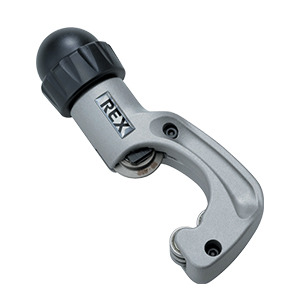

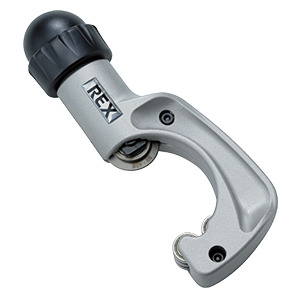

N30S / 427630
N30P
N42S / 427642
N42P

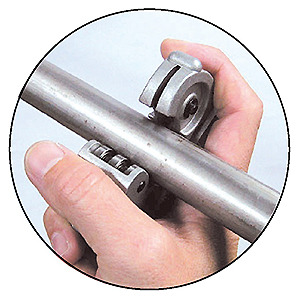

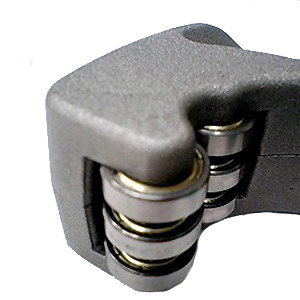

Roller with radial ball bearings (Model N42S)

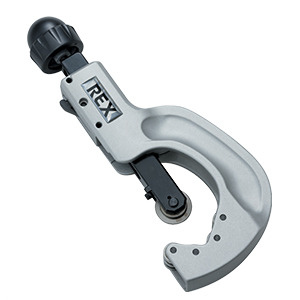

N67S / 427667
N67S

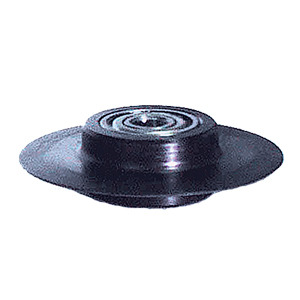

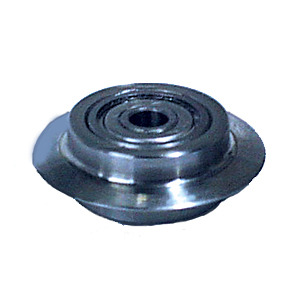

Cutter wheel for Copper tube only : 424241 / 424231 / 424232 / 424234
Cutter wheel for Copper tube and Coated copper tube : 424242 / 424292
Cutter wheel for PE tube : 424236 / 424245

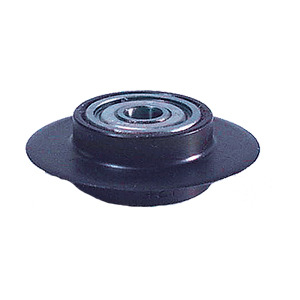

Cutter wheel for Thin wall stainless steel tube : 424240 / 424284 / 424286

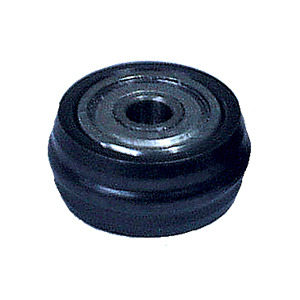

Roller for Thin wall stainless steel tube (grooving) : 424238 / 424239
SPECIFICATIONS
Specifications
| Code No. | Model | Capacity (outside diameter) |
Half diameter of rolling |
Length |
Weight |
Number of Bearings | Applicable tube | English Package | |||
| Copper tube | Coated copper tube | Thin wall stainless steel tube | PE tube | ||||||||
| 425122 | RB22 | 5-22 | 43 | 57 | 130 | 5 | ○ | ||||
| 427128 | RBN28 | 4-28 | 60 | 93 | 175 | 8 | ○ | ||||
| 427228 | RBN28S | ○ | |||||||||
| 427430 | RBN30P | 5-34 | 132 | 150 | 360 | 8 | ○ | ○ | ○ | ||
| 427230 | RBN30S | ○ | ○ | ||||||||
| 427442 | RBN42P | 6-42 | 150 | 180 | 400 | 8 | ○ | ○ | ○ | ||
| 427242 | RBN42S | ○ | ○ | ||||||||
| 427342 | RBN42M* | ○ | |||||||||
| 427466 | RBN67P | 12-67 | 222-250 | 330 | 870 | 14 | ○ | ○ | ○ | ||
| 427267 | RBN67S | 223-251 | ○ | ○ | |||||||
| 427467 | RBN67PE | 12-65 | 253-257 | ○ | |||||||
| 427367 | RBN67M* | 12-67 | 12 | ○ | |||||||
*grooving tool
Cutter wheels and Roller
| Code No. | For use with | Use | Type | Quantity per Package | English Package |
| 424241 | RB22 | Copper tube only | Cutter wheels | 1 | |
| 424231 | RB28, N28 | 1 | |||
| 424234 | RB67 | 1 | |||
| 424242 | RB30mini | Copper tube and Coated copper tube | 1 | ||
| 424292 | RB30P, RB42P, N30P, RBN42P, RBN67P | 1 | ○ | ||
| 424236 | RB67PE | PE Tube | 1 | ||
| 424245 | RBN67PE | 1 | |||
| 424240 | RB28S, RBN28S, RB30miniS | Copper tube only | 1 | ||
| 424284 | RB30S, RB42S, RBN30S, N42S, N67S | 1 | ○ | ||
| 424286 | RBN67S | 1 | ○ | ||
| 424238 | RB42M, RBN42M, RBN67M | Copper tube and Coated copper tube | Roller | 1 | |
| 424239 | RBN67M | 1 |
