HYPER SAW XS150S
Perfect for replacing pipes and demolition work!
Lightweight, Great Strength and Durability
The HYPER SAW XS150S is a reciprocating saw for steel and stainless steel pipes that is durable in harsh work environment,
lightweight enough to be used even at height, and powerful enough to cut quickly and accurately.
It is ideal for replacing and dismantling existing pipes, and is effective for cutting stainless steel pipes.
Note: This product has two model numbers: 220V standard specification / 380160 and 100V / 380150 .

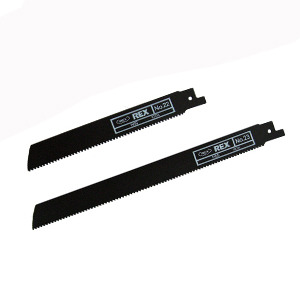

STANDARD ACCESSORIES
Thick blade / HSS Saw Blade
Bi-metal Blade 4" (No.22) / 381002
Bi-metal Blade 6" (No.23) / 381003
Use : Steel / Cast iron pipe /Mild steel materials
Material : HSS

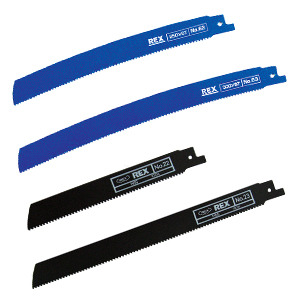

Hyper Saw Blade : Thick blade
Cobra Blade 5" (Optional Blade) / 380062
Cobra Blade 6" (Optional Blade) / 380063
Cobra Blade : Curved shape provides greater speed.
Bi-metal Blade 4" / *381002
Bi-metal Blade 6" / *381003
*Standard accssory for XS150S

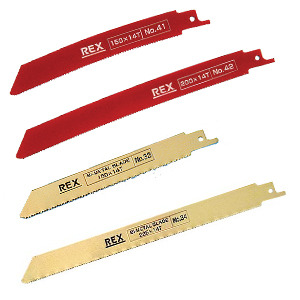

Hyper Saw Blade (Optional Blade) : Thin blade
Cobra Blade 2" / 380041
Cobra Blade 4" / 380042
Bi-metal Blade 2" / 380033
Bi-metal Blade 4" / 380034
Cobra Blade : Curved shape provides greater speed.
SPECIFICATIONS
HYPER SAW XS150S <up to 200A (8")>
| Code No. | 380150 | 380160 |
| Model | Hyper Saw XS150S | |
| Cutting capacity | Steel pipe : up to O. D. of 216 mm (200A : 8") *1 / Stainless steel pipe : up to O. D. of 140 mm (125A : 5") , Stainless steel pipe : wall thickness : less than 3 mm *2 |
|
| Voltage (V) | 100 | 220 |
| Motor | Single phase series motor (50/60Hz) Input 1200W | |
| No. of Strokes (1/min) | 950 - 2050 (stroke 26 mm) | |
| Main unit Weight (kg) | 4 | |
*1: Saw blade No.24/381004 option required for cutting 200a pipe.
*2: Thin saw blade saw-holder & thin saw blade (option) required for cutting stainless steel pipe.
Hyper Saw Blades
| Code No. | Type (Product name) | Appropriate Pipe Size.A (inch) | Length (mm) | Teeth (per inch) | Thickness (mm) | Width (mm) | Material | Use | No. per pack | ||
| Thin blade | 380041 | Cobra Blade | No.41 | up to 50(2") | 150 | 14 | 0.9 | 18 | Blade : Matrix II Trunk : Alloy tool steel | Steel pipe Stainless steel pipe Mild steel materials | 5 |
| 380042 | No.42 | up to 100(4") | 200 | ||||||||
| 380043 | No.43 | up to 50(2") | 150 | 18 | |||||||
| 380044 | No.44 | up to 100(4") | 200 | ||||||||
| 380045 | No.45 | up to 125(5") | 250 | 14 | |||||||
| 380033 | Bi-metal Blade | No.33 | up to 50(2") | 150 | Bi-metal blade Blade : Cobalt HSS Trunk : SUP (spring steel) | ||||||
| 380034 | No.34 | up to 100(4") | 225 | ||||||||
| 380035 | No.35 | up to 50(2") | 150 | 18 | |||||||
| 380036 | No.36 | up to 100(4") | 225 | ||||||||
| Thick blade | 380061 | Cobra Blade | No.61 | up to 80(3") | 200 | 8 | 1.6 | 25 | Blade : Matrix II Trunk : Alloy tool steel | Steel / Cast iron pipe Stainless steel pipe Mild steel materials | |
| 380062 | No.62 | up to 125(5") | 250 | ||||||||
| 380063 | No.63 | up to 150(6") | 300 | ||||||||
| 381001 | HSS Saw Blade | No.21 | up to 50(2") | 140 | HSS | 5 | |||||
| 381002* | No.22 | up to 100(4") | 200 | ||||||||
| 381003* | No.23 | up to 150(6") | 290 | ||||||||
| 381004 | No.24 | up to 200(8") | 320 | 10 | |||||||
| Saw blade holder |
381009 | Thin saw blade holder | For saw blades : No.41, No.42, No.43, No.44, No.45, No.33, No.34, No.35, No.36 | 1 | |||||||
| 381007 | Thick saw blade holder | For saw blades : No.61, No.62, No.63, No.21, No.22, No.23, No.24 | |||||||||
*Standard accessory for XS150S
